Data Preprocessing¶

We have all heard the phrase "garbage in, garbage out", in the realm of Machine Learning, it translates to Bad Data, Bad Results.

Throughout this bootcamp we will delve into Python and play with data. We will explore several valuable libraries such as numpy, pandas, scikit et cetera. Python is widely used in ML (Machine Learning) due to it's simplicity in syntax and extensive open source libraries.

Introduction To Python¶

So what is Python? A Snake? Yes, but also a programming language that encompasses well known concepts such as conditionals (if-else statements), loops (for, while), arithmethic (+,-,*,/) and more. Throughout this course we will explain all the syntax we use, but still a basic understanding can be of use. Let's start simple...

The Basics¶

Printing¶

In [2]:

print("Heya World") # Will print to console, this is a comment

print("Heya World") # Will print to console, this is a comment

Heya World

Do note that python does not use curly braces unlike most languages, it doesn't even need semicolons at the end of each statement;

Instead it solely relies on indentation.

Conditionals¶

In [3]:

a = 1+1 # basic arithmethic
if a == 2:
    print("Maths is real")
elif a == 1: # elif is how you write else if in python
    print("How??")
else:
    print("What??")

a = 1+1 # basic arithmethic if a == 2: print("Maths is real") elif a == 1: # elif is how you write else if in python print("How??") else: print("What??")

Maths is real

Loops¶

Loops in python are also simple.

In [4]:

for i in range(10): # loops 10 times from 0 to 9
    print(i)

###

i=0
while i<10: # Equaivalent while loop of the above for
    print(i)
    i += 1 # Abbreviated means of addition can also use -= /= or */

for i in range(10): # loops 10 times from 0 to 9 print(i) ### i=0 while i<10: # Equaivalent while loop of the above for print(i) i += 1 # Abbreviated means of addition can also use -= /= or */

0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9

Datatypes¶

All this is great, but what are the datatypes available in this langauge?

Well, the common datatypes are integers, floats, booleans and strings. More complex ones would be Lists, Tuples and Dictionaries. They are all fairly simple, and you can learn more about them by checking the links provided.

Functions¶

In [5]:

def ml_function(): # How to define a function
    print("It is 2023")

ml_function() # How to call a function

def ml_function(): # How to define a function print("It is 2023") ml_function() # How to call a function

It is 2023

Python Libraries¶

Libraries are collections of modules, and modules are simply python code - functions, classes, constants etc. Below is a simple example of this.

In [6]:

import math

print(math.pi)

import math print(math.pi)

3.141592653589793

How does this work?

When we write import math, Python brings in all the code written under the math module into our program, and then we access math.PI which is a constant in the module. You can always learn more about any module by referring to the documentation.

The libraries that are important to us, are those that do things related to Machine Learning, initially we will see how to handle data, with the help of a library known as Pandas.

Pandas¶

Pandas Docs. The Dataset we will be using for out first foray into Pandas is the Insurance Targets List.

In [7]:

import pandas as pd

data = pd.read_csv('data.csv')
data.head()
# data.tail()

import pandas as pd data = pd.read_csv('data.csv') data.head() # data.tail()

Out[7]:

	Country	Age	Salary	Purchased
0	France	44.0	72000.0	No
1	Spain	27.0	48000.0	Yes
2	Germany	30.0	54000.0	No
3	Spain	38.0	61000.0	No
4	Germany	40.0	NaN	Yes

In [8]:

data.shape

data.shape

Out[8]:

(10, 4)

In [9]:

data.columns

data.columns

Out[9]:

Index(['Country', 'Age', 'Salary', 'Purchased'], dtype='object')

Data Indexing¶

Pandas offers two ways to index data:

• .loc - Label Based Indexing
• .iloc - Integer Based Indexing

.loc¶

• loc interprets values provided as labels (strings).
• Its often used for conditional indexing.
• It includes last index.

In [10]:

data.loc[2:8] # Reads this as a label, since our index is numeric lookss same as iloc

data.loc[2:8] # Reads this as a label, since our index is numeric lookss same as iloc

Out[10]:

	Country	Age	Salary	Purchased
2	Germany	30.0	54000.0	No
3	Spain	38.0	61000.0	No
4	Germany	40.0	NaN	Yes
5	France	35.0	58000.0	Yes
6	Spain	NaN	52000.0	No
7	France	48.0	79000.0	Yes
8	Germany	50.0	83000.0	No

In [11]:

data.loc[data['Salary']>70000] # loc allows us conditionals

data.loc[data['Salary']>70000] # loc allows us conditionals

Out[11]:

	Country	Age	Salary	Purchased
0	France	44.0	72000.0	No
7	France	48.0	79000.0	Yes
8	Germany	50.0	83000.0	No

In [12]:

data.loc[(data['Purchased'].str.contains('No')) & ( data['Salary']>70000)] # Grouping conditionals is also possible

data.loc[(data['Purchased'].str.contains('No')) & ( data['Salary']>70000)] # Grouping conditionals is also possible

Out[12]:

	Country	Age	Salary	Purchased
0	France	44.0	72000.0	No
8	Germany	50.0	83000.0	No

.iloc¶

• In pandas we use a method iloc which stands for integer locate
• It views all input as integer indices
• in contrast to loc it doesn't include last index

In [13]:

data.iloc[2:8]

data.iloc[2:8]

Out[13]:

	Country	Age	Salary	Purchased
2	Germany	30.0	54000.0	No
3	Spain	38.0	61000.0	No
4	Germany	40.0	NaN	Yes
5	France	35.0	58000.0	Yes
6	Spain	NaN	52000.0	No
7	France	48.0	79000.0	Yes

In [14]:

data.iloc[2:8, 2:5]

data.iloc[2:8, 2:5]

Out[14]:

	Salary	Purchased
2	54000.0	No
3	61000.0	No
4	NaN	Yes
5	58000.0	Yes
6	52000.0	No
7	79000.0	Yes

In [15]:

X = data.iloc[:, 1:].values
print(X)

X = data.iloc[:, 1:].values print(X)

[[44.0 72000.0 'No']
 [27.0 48000.0 'Yes']
 [30.0 54000.0 'No']
 [38.0 61000.0 'No']
 [40.0 nan 'Yes']
 [35.0 58000.0 'Yes']
 [nan 52000.0 'No']
 [48.0 79000.0 'Yes']
 [50.0 83000.0 'No']
 [37.0 67000.0 'Yes']]

Exploring Data¶

Data exploration is the first step of data analysis used to explore and visualize data to uncover insights from the start or identify areas or patterns to dig into more.

.unique()¶

Returns a list of unique values in a given Series

.value_counts()¶

Returns a Series of count of each value in a given Series

In [16]:

import IPython.display as ipd
import numpy as np
# Loading data
data = pd.read_csv("Train.csv")
data.head() # By default gives only 5 entries, Has a max limit of 50, accepts parameter upto 50
# data.tail()

import IPython.display as ipd import numpy as np # Loading data data = pd.read_csv("Train.csv") data.head() # By default gives only 5 entries, Has a max limit of 50, accepts parameter upto 50 # data.tail()

Out[16]:

	Item_Identifier	Item_Weight	Item_Fat_Content	Item_Visibility	Item_Type	Item_MRP	Outlet_Identifier	Outlet_Establishment_Year	Outlet_Size	Outlet_Location_Type	Outlet_Type	Item_Outlet_Sales
0	FDA15	9.30	Low Fat	0.016047	Dairy	249.8092	OUT049	1999	Medium	Tier 1	Supermarket Type1	3735.1380
1	DRC01	5.92	Regular	0.019278	Soft Drinks	48.2692	OUT018	2009	Medium	Tier 3	Supermarket Type2	443.4228
2	FDN15	17.50	Low Fat	0.016760	Meat	141.6180	OUT049	1999	Medium	Tier 1	Supermarket Type1	2097.2700
3	FDX07	19.20	Regular	0.000000	Fruits and Vegetables	182.0950	OUT010	1998	NaN	Tier 3	Grocery Store	732.3800
4	NCD19	8.93	Low Fat	0.000000	Household	53.8614	OUT013	1987	High	Tier 3	Supermarket Type1	994.7052

In [17]:

data["Item_Type"].unique()

data["Item_Type"].unique()

Out[17]:

array(['Dairy', 'Soft Drinks', 'Meat', 'Fruits and Vegetables',
       'Household', 'Baking Goods', 'Snack Foods', 'Frozen Foods',
       'Breakfast', 'Health and Hygiene', 'Hard Drinks', 'Canned',
       'Breads', 'Starchy Foods', 'Others', 'Seafood'], dtype=object)

In [18]:

data["Item_Type"].value_counts()
# ipd.display(data["Item_Type"].count())

data["Item_Type"].value_counts() # ipd.display(data["Item_Type"].count())

Out[18]:

Fruits and Vegetables    1232
Snack Foods              1200
Household                 910
Frozen Foods              856
Dairy                     682
Canned                    649
Baking Goods              648
Health and Hygiene        520
Soft Drinks               445
Meat                      425
Breads                    251
Hard Drinks               214
Others                    169
Starchy Foods             148
Breakfast                 110
Seafood                    64
Name: Item_Type, dtype: int64

Inconsistent Data¶

Checking the same for Item Fat Content:

In [19]:

data["Item_Fat_Content"].unique()

data["Item_Fat_Content"].unique()

Out[19]:

array(['Low Fat', 'Regular', 'low fat', 'LF', 'reg'], dtype=object)

In [20]:

data["Item_Fat_Content"].value_counts()

data["Item_Fat_Content"].value_counts()

Out[20]:

Low Fat    5089
Regular    2889
LF          316
reg         117
low fat     112
Name: Item_Fat_Content, dtype: int64

To deal with missing values we could replace each manually or we could python in-built string processing library by:

1. Converting all variables to lower-case, this takes care of capitalization inconsistencies
2. Converting all alternate labels to a singular label, lf and ref to low fat and regular

In [21]:

dat_copy = data.copy() # Making a shallow copy to avoid any conversion issues
dat_copy["Item_Fat_Content"] = dat_copy["Item_Fat_Content"].str.lower()
ipd.display(dat_copy["Item_Fat_Content"].unique())


# dat_copy["Item_Fat_Content"] = dat_copy["Item_Fat_Content"].replace("lf","low fat")
dat_copy["Item_Fat_Content"] = dat_copy["Item_Fat_Content"].replace({"lf":"low fat", "reg": "regular"})
dat_copy["Item_Fat_Content"].unique()

# dat_copy["Item_Fat_Content"].value_counts()

dat_copy = data.copy() # Making a shallow copy to avoid any conversion issues dat_copy["Item_Fat_Content"] = dat_copy["Item_Fat_Content"].str.lower() ipd.display(dat_copy["Item_Fat_Content"].unique()) # dat_copy["Item_Fat_Content"] = dat_copy["Item_Fat_Content"].replace("lf","low fat") dat_copy["Item_Fat_Content"] = dat_copy["Item_Fat_Content"].replace({"lf":"low fat", "reg": "regular"}) dat_copy["Item_Fat_Content"].unique() # dat_copy["Item_Fat_Content"].value_counts()

array(['low fat', 'regular', 'lf', 'reg'], dtype=object)

Out[21]:

array(['low fat', 'regular'], dtype=object)

In [22]:

data = dat_copy
data.head(15)

data = dat_copy data.head(15)

Out[22]:

	Item_Identifier	Item_Weight	Item_Fat_Content	Item_Visibility	Item_Type	Item_MRP	Outlet_Identifier	Outlet_Establishment_Year	Outlet_Size	Outlet_Location_Type	Outlet_Type	Item_Outlet_Sales
0	FDA15	9.300	low fat	0.016047	Dairy	249.8092	OUT049	1999	Medium	Tier 1	Supermarket Type1	3735.1380
1	DRC01	5.920	regular	0.019278	Soft Drinks	48.2692	OUT018	2009	Medium	Tier 3	Supermarket Type2	443.4228
2	FDN15	17.500	low fat	0.016760	Meat	141.6180	OUT049	1999	Medium	Tier 1	Supermarket Type1	2097.2700
3	FDX07	19.200	regular	0.000000	Fruits and Vegetables	182.0950	OUT010	1998	NaN	Tier 3	Grocery Store	732.3800
4	NCD19	8.930	low fat	0.000000	Household	53.8614	OUT013	1987	High	Tier 3	Supermarket Type1	994.7052
5	FDP36	10.395	regular	0.000000	Baking Goods	51.4008	OUT018	2009	Medium	Tier 3	Supermarket Type2	556.6088
6	FDO10	13.650	regular	0.012741	Snack Foods	57.6588	OUT013	1987	High	Tier 3	Supermarket Type1	343.5528
7	FDP10	NaN	low fat	0.127470	Snack Foods	107.7622	OUT027	1985	Medium	Tier 3	Supermarket Type3	4022.7636
8	FDH17	16.200	regular	0.016687	Frozen Foods	96.9726	OUT045	2002	NaN	Tier 2	Supermarket Type1	1076.5986
9	FDU28	19.200	regular	0.094450	Frozen Foods	187.8214	OUT017	2007	NaN	Tier 2	Supermarket Type1	4710.5350
10	FDY07	11.800	low fat	0.000000	Fruits and Vegetables	45.5402	OUT049	1999	Medium	Tier 1	Supermarket Type1	1516.0266
11	FDA03	18.500	regular	0.045464	Dairy	144.1102	OUT046	1997	Small	Tier 1	Supermarket Type1	2187.1530
12	FDX32	15.100	regular	0.100014	Fruits and Vegetables	145.4786	OUT049	1999	Medium	Tier 1	Supermarket Type1	1589.2646
13	FDS46	17.600	regular	0.047257	Snack Foods	119.6782	OUT046	1997	Small	Tier 1	Supermarket Type1	2145.2076
14	FDF32	16.350	low fat	0.068024	Fruits and Vegetables	196.4426	OUT013	1987	High	Tier 3	Supermarket Type1	1977.4260

Missing Values¶

Missing values in datasets are often represented by NaN or None. It usually requires to cleaned before being fed into a model. But before we get into missing values, here's a small revision:

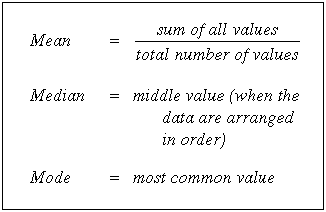

1. The mean is the average of a data set.
2. The mode is the most common number in a data set.
3. The median is the middle of the set of numbers.

How to deal with missing data?

1. Drop data
   a. Drop the whole row
   b. Drop the whole column

2. Replace data
   a. Replace it by mean
   b. Replace it by frequency
   c. Replace it based on other functions

In [23]:

data["Outlet_Size"].unique()

data["Outlet_Size"].unique()

Out[23]:

array(['Medium', nan, 'High', 'Small'], dtype=object)

Missing data can also be found by isnull() or isna() functions.

In [24]:

ipd.display(data.isnull().any())

ipd.display(data.isnull().any())

Item_Identifier              False
Item_Weight                   True
Item_Fat_Content             False
Item_Visibility              False
Item_Type                    False
Item_MRP                     False
Outlet_Identifier            False
Outlet_Establishment_Year    False
Outlet_Size                   True
Outlet_Location_Type         False
Outlet_Type                  False
Item_Outlet_Sales            False
dtype: bool

We can figure which of our rows are missing their Item Weights by the following:

In [25]:

data[data['Item_Weight'].isnull()] #1462 columns

data[data['Item_Weight'].isnull()] #1462 columns

Out[25]:

	Item_Identifier	Item_Weight	Item_Fat_Content	Item_Visibility	Item_Type	Item_MRP	Outlet_Identifier	Outlet_Establishment_Year	Outlet_Size	Outlet_Location_Type	Outlet_Type	Item_Outlet_Sales
7	FDP10	NaN	low fat	0.127470	Snack Foods	107.7622	OUT027	1985	Medium	Tier 3	Supermarket Type3	4022.7636
18	DRI11	NaN	low fat	0.034238	Hard Drinks	113.2834	OUT027	1985	Medium	Tier 3	Supermarket Type3	2303.6680
21	FDW12	NaN	regular	0.035400	Baking Goods	144.5444	OUT027	1985	Medium	Tier 3	Supermarket Type3	4064.0432
23	FDC37	NaN	low fat	0.057557	Baking Goods	107.6938	OUT019	1985	Small	Tier 1	Grocery Store	214.3876
29	FDC14	NaN	regular	0.072222	Canned	43.6454	OUT019	1985	Small	Tier 1	Grocery Store	125.8362
...	...	...	...	...	...	...	...	...	...	...	...	...
8485	DRK37	NaN	low fat	0.043792	Soft Drinks	189.0530	OUT027	1985	Medium	Tier 3	Supermarket Type3	6261.8490
8487	DRG13	NaN	low fat	0.037006	Soft Drinks	164.7526	OUT027	1985	Medium	Tier 3	Supermarket Type3	4111.3150
8488	NCN14	NaN	low fat	0.091473	Others	184.6608	OUT027	1985	Medium	Tier 3	Supermarket Type3	2756.4120
8490	FDU44	NaN	regular	0.102296	Fruits and Vegetables	162.3552	OUT019	1985	Small	Tier 1	Grocery Store	487.3656
8504	NCN18	NaN	low fat	0.124111	Household	111.7544	OUT027	1985	Medium	Tier 3	Supermarket Type3	4138.6128

1463 rows × 12 columns

As Item_Weight is a Ratio (continious) variable we replace it by it's Mean

In [26]:

# Replace Outlet by mode
# Replace Item_weight by mean

avg_item_wt = data["Item_Weight"].astype("float").mean()

data_cpy = data.copy()
data_cpy["Item_Weight"].replace(np.nan, avg_item_wt, inplace=True)
data_cpy["Item_Weight"].isnull().any()
#Maybe assert

# Replace Outlet by mode # Replace Item_weight by mean avg_item_wt = data["Item_Weight"].astype("float").mean() data_cpy = data.copy() data_cpy["Item_Weight"].replace(np.nan, avg_item_wt, inplace=True) data_cpy["Item_Weight"].isnull().any() #Maybe assert

Out[26]:

False

As Outlet_size is an ordinal variable we replace it by it's Mode

In [27]:

data_cpy = data.copy()

ipd.display(data_cpy["Outlet_Size"].value_counts())
outlet_mode = data_cpy["Outlet_Size"].mode()
data_cpy["Outlet_Size"].replace(np.nan, outlet_mode[0], inplace=True)

data_cpy["Outlet_Size"].isnull().any()
# data_cpy["Outlet_Size"].value_counts()

data_cpy = data.copy() ipd.display(data_cpy["Outlet_Size"].value_counts()) outlet_mode = data_cpy["Outlet_Size"].mode() data_cpy["Outlet_Size"].replace(np.nan, outlet_mode[0], inplace=True) data_cpy["Outlet_Size"].isnull().any() # data_cpy["Outlet_Size"].value_counts()

Medium    2793
Small     2388
High       932
Name: Outlet_Size, dtype: int64

Out[27]:

False

In [28]:

data.head()

data.head()

Out[28]:

	Item_Identifier	Item_Weight	Item_Fat_Content	Item_Visibility	Item_Type	Item_MRP	Outlet_Identifier	Outlet_Establishment_Year	Outlet_Size	Outlet_Location_Type	Outlet_Type	Item_Outlet_Sales
0	FDA15	9.30	low fat	0.016047	Dairy	249.8092	OUT049	1999	Medium	Tier 1	Supermarket Type1	3735.1380
1	DRC01	5.92	regular	0.019278	Soft Drinks	48.2692	OUT018	2009	Medium	Tier 3	Supermarket Type2	443.4228
2	FDN15	17.50	low fat	0.016760	Meat	141.6180	OUT049	1999	Medium	Tier 1	Supermarket Type1	2097.2700
3	FDX07	19.20	regular	0.000000	Fruits and Vegetables	182.0950	OUT010	1998	NaN	Tier 3	Grocery Store	732.3800
4	NCD19	8.93	low fat	0.000000	Household	53.8614	OUT013	1987	High	Tier 3	Supermarket Type1	994.7052

In [29]:

data = data_cpy
ipd.display(data.isnull().any())

data = data_cpy ipd.display(data.isnull().any())

Item_Identifier              False
Item_Weight                   True
Item_Fat_Content             False
Item_Visibility              False
Item_Type                    False
Item_MRP                     False
Outlet_Identifier            False
Outlet_Establishment_Year    False
Outlet_Size                  False
Outlet_Location_Type         False
Outlet_Type                  False
Item_Outlet_Sales            False
dtype: bool

Normalization¶

Normalization is a data preparation technique that is frequently used in machine learning. The process of transforming the columns in a dataset to the same scale is referred to as normalization. Every dataset does not need to be normalized for machine learning. It is only required when the ranges of characteristics are different. (We will learn more in coming sessions)

Dealing with Outliers¶

Sometimes outliers can mess up an analysis; you usually don't want a handful of data points to skew the overall results. Let's see an example of income data, with some random billionaire thrown in:

In [30]:

%matplotlib inline
import numpy as np

incomes = np.random.normal(27000, 15000, 10000)
incomes = np.append(incomes, [1000000000])

import matplotlib.pyplot as plt
plt.hist(incomes, 50)
plt.show()

%matplotlib inline import numpy as np incomes = np.random.normal(27000, 15000, 10000) incomes = np.append(incomes, [1000000000]) import matplotlib.pyplot as plt plt.hist(incomes, 50) plt.show()

That's not very helpful to look at. One billionaire ended up squeezing everybody else into a single line in my histogram. Plus it skewed my mean income significantly:

In [31]:

incomes.mean()

incomes.mean()

Out[31]:

127014.53247334201

It's important to dig into what is causing your outliers, and understand where they are coming from. You also need to think about whether removing them is a valid thing to do, given the spirit of what it is you're trying to analyze. If I know I want to understand more about the incomes of "typical Americans", filtering out billionaires seems like a legitimate thing to do.

Here's something a little more robust than filtering out billionaires - it filters out anything beyond two standard deviations of the median value in the data set:

In [32]:

def reject_outliers(data):
    u = np.median(data)
    s = np.std(data)
    filtered = [e for e in data if (u - 2 * s < e < u + 2 * s)]
    return filtered

filtered = reject_outliers(incomes)

plt.hist(filtered, 50)
plt.show()

def reject_outliers(data): u = np.median(data) s = np.std(data) filtered = [e for e in data if (u - 2 * s < e < u + 2 * s)] return filtered filtered = reject_outliers(incomes) plt.hist(filtered, 50) plt.show()

That looks better. And, our mean is more, well, meangingful now as well:

In [33]:

np.mean(filtered)

np.mean(filtered)

Out[33]:

27027.233926589364

Activity¶

Instead of a single outlier, add several randomly-generated outliers to the data. Experiment with different values of the multiple of the standard deviation to identify outliers, and see what effect it has on the final results.

In [ ]:

MatPlotLib Basics¶

Draw a line graph¶

In [34]:

%matplotlib inline
from scipy.stats import norm
import matplotlib.pyplot as plt
import numpy as np

x = np.arange(-3, 3, 0.01)

plt.plot(x, norm.pdf(x))
plt.show()

%matplotlib inline from scipy.stats import norm import matplotlib.pyplot as plt import numpy as np x = np.arange(-3, 3, 0.01) plt.plot(x, norm.pdf(x)) plt.show()

Mutiple Plots on One Graph¶

In [35]:

plt.plot(x, norm.pdf(x))
plt.plot(x, norm.pdf(x, 1.0, 0.5))
plt.show()

plt.plot(x, norm.pdf(x)) plt.plot(x, norm.pdf(x, 1.0, 0.5)) plt.show()

Save it to a File¶

In [36]:

plt.plot(x, norm.pdf(x))
plt.plot(x, norm.pdf(x, 1.0, 0.5))
plt.savefig('MyPlot.png', format='png')

plt.plot(x, norm.pdf(x)) plt.plot(x, norm.pdf(x, 1.0, 0.5)) plt.savefig('MyPlot.png', format='png')

Adjust the Axes¶

In [37]:

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
plt.plot(x, norm.pdf(x))
plt.plot(x, norm.pdf(x, 1.0, 0.5))
plt.show()

axes = plt.axes() axes.set_xlim([-5, 5]) axes.set_ylim([0, 1.0]) axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]) axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0]) plt.plot(x, norm.pdf(x)) plt.plot(x, norm.pdf(x, 1.0, 0.5)) plt.show()

Add a Grid¶

In [38]:

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
axes.grid()
plt.plot(x, norm.pdf(x))
plt.plot(x, norm.pdf(x, 1.0, 0.5))
plt.show()

axes = plt.axes() axes.set_xlim([-5, 5]) axes.set_ylim([0, 1.0]) axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]) axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0]) axes.grid() plt.plot(x, norm.pdf(x)) plt.plot(x, norm.pdf(x, 1.0, 0.5)) plt.show()

Change Line Types and Colors¶

In [39]:

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
axes.grid()
plt.plot(x, norm.pdf(x), 'b-')
plt.plot(x, norm.pdf(x, 1.0, 0.5), 'r:')
plt.show()

axes = plt.axes() axes.set_xlim([-5, 5]) axes.set_ylim([0, 1.0]) axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]) axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0]) axes.grid() plt.plot(x, norm.pdf(x), 'b-') plt.plot(x, norm.pdf(x, 1.0, 0.5), 'r:') plt.show()

Labeling Axes and Adding a Legend¶

In [40]:

axes = plt.axes()
axes.set_xlim([-5, 5])
axes.set_ylim([0, 1.0])
axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5])
axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0])
axes.grid()
plt.xlabel('Greebles')
plt.ylabel('Probability')
plt.plot(x, norm.pdf(x), 'b-')
plt.plot(x, norm.pdf(x, 1.0, 0.5), 'r:')
plt.legend(['Sneetches', 'Gacks'], loc=4)
plt.show()

axes = plt.axes() axes.set_xlim([-5, 5]) axes.set_ylim([0, 1.0]) axes.set_xticks([-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5]) axes.set_yticks([0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0]) axes.grid() plt.xlabel('Greebles') plt.ylabel('Probability') plt.plot(x, norm.pdf(x), 'b-') plt.plot(x, norm.pdf(x, 1.0, 0.5), 'r:') plt.legend(['Sneetches', 'Gacks'], loc=4) plt.show()

XKCD Style :)¶

In [41]:

import logging
logging.getLogger('matplotlib.font_manager').setLevel(logging.ERROR) # to stop a font import warning
plt.xkcd()

fig = plt.figure()
ax = fig.add_subplot(1, 1, 1)
ax.spines['right'].set_color('none')
ax.spines['top'].set_color('none')
plt.xticks([])
plt.yticks([])
ax.set_ylim([-30, 10])

data = np.ones(100)
data[70:] -= np.arange(30)

plt.annotate(
    'THE DAY I REALIZED\nI COULD EAT ICECREAM\nWHENEVER I WANTED',
    xy=(70, 1), arrowprops=dict(arrowstyle='->'), xytext=(15, -10))

plt.plot(data)

plt.xlabel('time')
plt.ylabel('my overall health')

import logging logging.getLogger('matplotlib.font_manager').setLevel(logging.ERROR) # to stop a font import warning plt.xkcd() fig = plt.figure() ax = fig.add_subplot(1, 1, 1) ax.spines['right'].set_color('none') ax.spines['top'].set_color('none') plt.xticks([]) plt.yticks([]) ax.set_ylim([-30, 10]) data = np.ones(100) data[70:] -= np.arange(30) plt.annotate( 'THE DAY I REALIZED\nI COULD EAT ICECREAM\nWHENEVER I WANTED', xy=(70, 1), arrowprops=dict(arrowstyle='->'), xytext=(15, -10)) plt.plot(data) plt.xlabel('time') plt.ylabel('my overall health')

Out[41]:

Text(0, 0.5, 'my overall health')

Pie Chart¶

In [42]:

# Remove XKCD mode:
plt.rcdefaults()

values = [12, 55, 4, 32, 14]
colors = ['r', 'g', 'b', 'c', 'm']
explode = [0, 0, 0.2, 0, 0]
labels = ['India', 'United States', 'Russia', 'China', 'Europe']
plt.pie(values, colors= colors, labels=labels, explode = explode)
plt.title('Student Locations')
plt.show()

# Remove XKCD mode: plt.rcdefaults() values = [12, 55, 4, 32, 14] colors = ['r', 'g', 'b', 'c', 'm'] explode = [0, 0, 0.2, 0, 0] labels = ['India', 'United States', 'Russia', 'China', 'Europe'] plt.pie(values, colors= colors, labels=labels, explode = explode) plt.title('Student Locations') plt.show()

Bar Chart¶

In [43]:

values = [12, 55, 4, 32, 14]
colors = ['r', 'g', 'b', 'c', 'm']
plt.bar(range(0,5), values, color= colors)
plt.show()

values = [12, 55, 4, 32, 14] colors = ['r', 'g', 'b', 'c', 'm'] plt.bar(range(0,5), values, color= colors) plt.show()

Scatter Plot¶

In [44]:

from pylab import randn

X = randn(500)
Y = randn(500)
plt.scatter(X,Y)
plt.show()

from pylab import randn X = randn(500) Y = randn(500) plt.scatter(X,Y) plt.show()

Histogram¶

In [45]:

incomes = np.random.normal(27000, 15000, 10000)
plt.hist(incomes, 50)
plt.show()

incomes = np.random.normal(27000, 15000, 10000) plt.hist(incomes, 50) plt.show()

Box & Whisker Plot¶

Useful for visualizing the spread & skew of data.

The red line represents the median of the data, and the box represents the bounds of the 1st and 3rd quartiles.

So, half of the data exists within the box.

The dotted-line "whiskers" indicate the range of the data - except for outliers, which are plotted outside the whiskers. Outliers are 1.5X or more the interquartile range.

This example below creates uniformly distributed random numbers between -40 and 60, plus a few outliers above 100 and below -100:

In [46]:

uniformSkewed = np.random.rand(100) * 100 - 40
high_outliers = np.random.rand(10) * 50 + 100
low_outliers = np.random.rand(10) * -50 - 100
data = np.concatenate((uniformSkewed, high_outliers, low_outliers))
plt.boxplot(data)
plt.show()

uniformSkewed = np.random.rand(100) * 100 - 40 high_outliers = np.random.rand(10) * 50 + 100 low_outliers = np.random.rand(10) * -50 - 100 data = np.concatenate((uniformSkewed, high_outliers, low_outliers)) plt.boxplot(data) plt.show()

Activity¶

Try creating a scatter plot representing random data on age vs. time spent watching TV. Label the axes.

In [ ]:

Seaborn¶

Seaborn is a visualization library that sits on top of matplotlib, making it nicer to look at and adding some extra capabilities too.

Let's start by loading up a real dataset on 2019 model-year vehicles, and plotting a histogram just using matplotlib to see the distribution by number of gears.

In [47]:

%matplotlib inline

import pandas as pd

df = pd.read_csv("http://media.sundog-soft.com/SelfDriving/FuelEfficiency.csv")

gear_counts = df['# Gears'].value_counts()

gear_counts.plot(kind='bar')

%matplotlib inline import pandas as pd df = pd.read_csv("http://media.sundog-soft.com/SelfDriving/FuelEfficiency.csv") gear_counts = df['# Gears'].value_counts() gear_counts.plot(kind='bar')

Out[47]:

<AxesSubplot:>

We can load up Seaborn, and just call set() on it to change matplotlib's default settings to something more visually pleasing.

In [48]:

!pip install seaborn

!pip install seaborn

Requirement already satisfied: seaborn in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (0.11.1)
Requirement already satisfied: scipy>=1.0 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (1.7.0)

[notice] A new release of pip available: 22.3.1 -> 23.0.1
[notice] To update, run: python.exe -m pip install --upgrade pip

Requirement already satisfied: matplotlib>=2.2 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (3.4.2)
Requirement already satisfied: numpy>=1.15 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (1.19.5)
Requirement already satisfied: pandas>=0.23 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (1.3.0)
Requirement already satisfied: cycler>=0.10 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (0.10.0)
Requirement already satisfied: pillow>=6.2.0 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (9.0.1)
Requirement already satisfied: kiwisolver>=1.0.1 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (1.3.1)
Requirement already satisfied: python-dateutil>=2.7 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (2.8.2)
Requirement already satisfied: pyparsing>=2.2.1 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (2.4.7)
Requirement already satisfied: pytz>=2017.3 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from pandas>=0.23->seaborn) (2021.1)
Requirement already satisfied: six in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from cycler>=0.10->matplotlib>=2.2->seaborn) (1.15.0)

In [49]:

!pip install seaborn

!pip install seaborn

Requirement already satisfied: seaborn in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (0.11.1)
Requirement already satisfied: pandas>=0.23 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (1.3.0)
Requirement already satisfied: numpy>=1.15 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (1.19.5)
Requirement already satisfied: matplotlib>=2.2 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (3.4.2)
Requirement already satisfied: scipy>=1.0 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from seaborn) (1.7.0)
Requirement already satisfied: pillow>=6.2.0 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (9.0.1)
Requirement already satisfied: python-dateutil>=2.7 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (2.8.2)
Requirement already satisfied: pyparsing>=2.2.1 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (2.4.7)
Requirement already satisfied: cycler>=0.10 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (0.10.0)
Requirement already satisfied: kiwisolver>=1.0.1 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from matplotlib>=2.2->seaborn) (1.3.1)
Requirement already satisfied: pytz>=2017.3 in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from pandas>=0.23->seaborn) (2021.1)
Requirement already satisfied: six in c:\users\anura\appdata\local\programs\python\python39\lib\site-packages (from cycler>=0.10->matplotlib>=2.2->seaborn) (1.15.0)

[notice] A new release of pip available: 22.3.1 -> 23.0.1
[notice] To update, run: python.exe -m pip install --upgrade pip

In [50]:

import seaborn as sns
sns.set()

import seaborn as sns sns.set()

Now if we do the same plot command, it's a little more modern looking. Matplotlib is based on Matplot, and its visualization defaults are frankly showing their age.

In [51]:

gear_counts.plot(kind='bar')

gear_counts.plot(kind='bar')

Out[51]:

<AxesSubplot:>

Let's take a closer look at the data we're dealing with.

In [52]:

df.head()

df.head()

Out[52]:

	Mfr Name	Carline	Eng Displ	Cylinders	Transmission	CityMPG	HwyMPG	CombMPG	# Gears
0	aston martin	Vantage V8	4.0	8	Auto(S8)	18	25	21	8
1	Volkswagen Group of	Chiron	8.0	16	Auto(AM-S7)	9	14	11	7
2	General Motors	CORVETTE	6.2	8	Auto(S8)	12	20	15	8
3	General Motors	CORVETTE	6.2	8	Auto(S8)	15	25	18	8
4	General Motors	CORVETTE	6.2	8	Auto(S8)	14	23	17	8

Seaborn includes many types of plots that matplotlib doens't offer. For example, "distplot" can be used to plot a histogram together with a smooth distribution of that histogram overlaid on it. Let's plot the distribution of MPG values on the vehicles in this database as an example:

In [53]:

sns.distplot(df['CombMPG'])

sns.distplot(df['CombMPG'])

c:\users\anura\appdata\local\programs\python\python39\lib\site-packages\seaborn\distributions.py:2557: FutureWarning: `distplot` is a deprecated function and will be removed in a future version. Please adapt your code to use either `displot` (a figure-level function with similar flexibility) or `histplot` (an axes-level function for histograms).
  warnings.warn(msg, FutureWarning)

Out[53]:

<AxesSubplot:xlabel='CombMPG', ylabel='Density'>

Something you encounter pretty often is a "pair plot" from Seaborn. This lets you visualize plots of every combination of various attributes together, so you can look for interesting patterns between features.

As an example, let's classify cars by how many cylinders are in their engines, and look for relationships between cylinders, city MPG rating, Highway MPG rating, and combined MPG rating.

In [54]:

df2 = df[['Cylinders', 'CityMPG', 'HwyMPG', 'CombMPG']]
df2.head()

df2 = df[['Cylinders', 'CityMPG', 'HwyMPG', 'CombMPG']] df2.head()

Out[54]:

	Cylinders	CityMPG	HwyMPG	CombMPG
0	8	18	25	21
1	16	9	14	11
2	8	12	20	15
3	8	15	25	18
4	8	14	23	17

In [55]:

sns.pairplot(df2, height=2.5);  #Seaborn currently has a bug with the hue parameter so we've omitted it

sns.pairplot(df2, height=2.5); #Seaborn currently has a bug with the hue parameter so we've omitted it

By studying the results above, you can see there is a relationship between number of cylinders and MPG, but MPG for 4-cylinder vehicles ranges really widely. There also appears to be a good linear relationship between the different ways of measuring MPG values, until you get into the higher MPG ratings.

Seaborn 1.9 also includes "scatterplot", which is exactly what it sounds like. It plots individual data points across two axes of your choosing, so you can see how your data is distributed across those dimensions.

In [56]:

sns.scatterplot(x="Eng Displ", y="CombMPG", data=df)

sns.scatterplot(x="Eng Displ", y="CombMPG", data=df)

Out[56]:

<AxesSubplot:xlabel='Eng Displ', ylabel='CombMPG'>

Seaborn also offers a "jointplot", which combines a scatterplot with histograms on both axes. This lets you visualize both the individual data points and the distribution across both dimensions at the same time.

In [57]:

sns.jointplot(x="Eng Displ", y="CombMPG", data=df)

sns.jointplot(x="Eng Displ", y="CombMPG", data=df)

Out[57]:

<seaborn.axisgrid.JointGrid at 0x1c602b2d850>

The "lmplot" is a scatterplot, but with a linear regression line computed and overlaid onto the data.

In [58]:

sns.lmplot(x="Eng Displ", y="CombMPG", data=df)

sns.lmplot(x="Eng Displ", y="CombMPG", data=df)

Out[58]:

<seaborn.axisgrid.FacetGrid at 0x1c603de5700>

Next, let's look at a "box plot." This is what's called a "box and whiskers" plot, which is useful for visualizing typical values for a given category without getting distracted by outliers. Each box represents the range between the first and third quartiles of the data, with a line representing the median value. The "whiskers" that extend from the box represent the spread of the remainder of the data, apart from clear outliers that are plotted as individual points outside of the whiskers.

As an example, let's look at box plots for each vehicle manufacturer, visualizing the miles-per-gallon ratings across the vehicles they produce. This lets us look at the spread of MPG ratings across all the vehicles each manufacturer offers.

There are a lot of manufacturers, so to make the resulting graph readable we'll increase Seaborn's default figure size, and also use set_xticklabels to rotate the labels 45 degrees.

In [59]:

sns.set(rc={'figure.figsize':(15,5)})
ax=sns.boxplot(x='Mfr Name', y='CombMPG', data=df)
ax.set_xticklabels(ax.get_xticklabels(),rotation=45)

sns.set(rc={'figure.figsize':(15,5)}) ax=sns.boxplot(x='Mfr Name', y='CombMPG', data=df) ax.set_xticklabels(ax.get_xticklabels(),rotation=45)

Out[59]:

[Text(0, 0, 'aston martin'),
 Text(1, 0, 'Volkswagen Group of'),
 Text(2, 0, 'General Motors'),
 Text(3, 0, 'Ferrari'),
 Text(4, 0, 'FCA US LLC'),
 Text(5, 0, 'Jaguar Land Rover L'),
 Text(6, 0, 'MAZDA'),
 Text(7, 0, 'Nissan'),
 Text(8, 0, 'Porsche'),
 Text(9, 0, 'BMW'),
 Text(10, 0, 'Subaru'),
 Text(11, 0, 'Toyota'),
 Text(12, 0, 'Ford Motor Company'),
 Text(13, 0, 'Mercedes-Benz'),
 Text(14, 0, 'Honda'),
 Text(15, 0, 'Hyundai'),
 Text(16, 0, 'Rolls-Royce'),
 Text(17, 0, 'Volvo'),
 Text(18, 0, 'Kia'),
 Text(19, 0, 'Maserati'),
 Text(20, 0, 'Mitsubishi Motors Co')]

Another way to visualize the same data is the "swarm plot." Instead of boxes and whiskers, it plots each individual data point - but does so in such way that groups them together based on their distribution. It makes more sense when you look at it:

In [60]:

ax=sns.swarmplot(x='Mfr Name', y='CombMPG', data=df)
ax.set_xticklabels(ax.get_xticklabels(),rotation=45)

ax=sns.swarmplot(x='Mfr Name', y='CombMPG', data=df) ax.set_xticklabels(ax.get_xticklabels(),rotation=45)

c:\users\anura\appdata\local\programs\python\python39\lib\site-packages\seaborn\categorical.py:1296: UserWarning: 31.4% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)
c:\users\anura\appdata\local\programs\python\python39\lib\site-packages\seaborn\categorical.py:1296: UserWarning: 6.7% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)
c:\users\anura\appdata\local\programs\python\python39\lib\site-packages\seaborn\categorical.py:1296: UserWarning: 30.8% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)
c:\users\anura\appdata\local\programs\python\python39\lib\site-packages\seaborn\categorical.py:1296: UserWarning: 29.6% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)

Out[60]:

[Text(0, 0, 'aston martin'),
 Text(1, 0, 'Volkswagen Group of'),
 Text(2, 0, 'General Motors'),
 Text(3, 0, 'Ferrari'),
 Text(4, 0, 'FCA US LLC'),
 Text(5, 0, 'Jaguar Land Rover L'),
 Text(6, 0, 'MAZDA'),
 Text(7, 0, 'Nissan'),
 Text(8, 0, 'Porsche'),
 Text(9, 0, 'BMW'),
 Text(10, 0, 'Subaru'),
 Text(11, 0, 'Toyota'),
 Text(12, 0, 'Ford Motor Company'),
 Text(13, 0, 'Mercedes-Benz'),
 Text(14, 0, 'Honda'),
 Text(15, 0, 'Hyundai'),
 Text(16, 0, 'Rolls-Royce'),
 Text(17, 0, 'Volvo'),
 Text(18, 0, 'Kia'),
 Text(19, 0, 'Maserati'),
 Text(20, 0, 'Mitsubishi Motors Co')]

Another tool is the "count plot." This is basically the same thing as a histogram, but for categorical data. It lets you count up how many times each given category on the X axis occurs in your data, and plot it. So for example, we can see that General Motors offers more vehicle models than anyone else, with BMW not far behind.

In [61]:

ax=sns.countplot(x='Mfr Name', data=df)
ax.set_xticklabels(ax.get_xticklabels(),rotation=45)

ax=sns.countplot(x='Mfr Name', data=df) ax.set_xticklabels(ax.get_xticklabels(),rotation=45)

Out[61]:

[Text(0, 0, 'aston martin'),
 Text(1, 0, 'Volkswagen Group of'),
 Text(2, 0, 'General Motors'),
 Text(3, 0, 'Ferrari'),
 Text(4, 0, 'FCA US LLC'),
 Text(5, 0, 'Jaguar Land Rover L'),
 Text(6, 0, 'MAZDA'),
 Text(7, 0, 'Nissan'),
 Text(8, 0, 'Porsche'),
 Text(9, 0, 'BMW'),
 Text(10, 0, 'Subaru'),
 Text(11, 0, 'Toyota'),
 Text(12, 0, 'Ford Motor Company'),
 Text(13, 0, 'Mercedes-Benz'),
 Text(14, 0, 'Honda'),
 Text(15, 0, 'Hyundai'),
 Text(16, 0, 'Rolls-Royce'),
 Text(17, 0, 'Volvo'),
 Text(18, 0, 'Kia'),
 Text(19, 0, 'Maserati'),
 Text(20, 0, 'Mitsubishi Motors Co')]

Finally, let's look at a heat-map in Seaborn. A heat map allows you to plot tabular, 2D data of some sort, with colors representing the individual values in each cell of the 2D table.

In this example, we'll create a pivot table from our original dataframe, to create a 2D table that contains the average MPG ratings for every combination of number of cylinders and engine displacement.

The resulting heatmap shows all of the engine displacement values along the X axis, and all of the cylinder values along the Y axis. For each cell of the table, the actual average MPG rating for that combination of cylinders and engine displacement is represented not as a number, but as a color that ranges from dark for small values, and light for larger values.

And, this does allow you visualize a clear trend where things get progressively darker as we move from the top-left of the graph to the bottom-right. Which makes sense; higher MPG ratings are associated with lower numbers of cylinders, and lower engine displacment values. By the time we get to an 8-liter 16-cylinder engine, the average MPG is at its worst of about 12, represented by the color black.

This particular graph has a lot of missing data, but the heatmap deals with that gracefully. A 3-cylinder 8-liter engine simply does not exist!

In [62]:

df2 = df.pivot_table(index='Cylinders', columns='Eng Displ', values='CombMPG', aggfunc='mean')
sns.heatmap(df2)

df2 = df.pivot_table(index='Cylinders', columns='Eng Displ', values='CombMPG', aggfunc='mean') sns.heatmap(df2)

Out[62]:

<AxesSubplot:xlabel='Eng Displ', ylabel='Cylinders'>

Exercise¶

Explore the relationship between the number of gears a car has, and its combined MPG rating. Visualize these two dimensions using a scatter plot, lmplot, jointplot, boxplot, and swarmplot. What conclusions can you draw?

In [ ]:

In [ ]:

In [ ]:

In [ ]:

In [ ]:

My solution is below - no peeking ahead of time!

In [63]:

sns.scatterplot(x='# Gears', y="CombMPG", data=df)

sns.scatterplot(x='# Gears', y="CombMPG", data=df)

Out[63]:

<AxesSubplot:xlabel='# Gears', ylabel='CombMPG'>

A scatterplot arranges itself into columns when you have ordinal data like the number of gears, but it tells us that there's a pretty wide range of MPG values for each type of gear box, although if you look at where the data points are clustered, you can sort of see a downward trend in MPG as the number of gears increases. But it's subtle.

We also see that there's such a thing as a single gear car. These are "continuously variable transmission" cars, and we can see they typically have high MPG ratings and are therefore quite efficient.

In [64]:

sns.lmplot(x='# Gears', y="CombMPG", data=df)

sns.lmplot(x='# Gears', y="CombMPG", data=df)

Out[64]:

<seaborn.axisgrid.FacetGrid at 0x1c60426aca0>

The "lmplot" gives us a linear regression of our data overlaid on the graph, and this makes the overall trend of lower MPG's with more gears apparent. More gears isn't better when it comes to efficiency, it seems. We also see the error bars on that regression line, which tells us this trend is probably real and not just the result of randomness in the samples.

In [65]:

sns.jointplot(x='# Gears', y="CombMPG", data=df)

sns.jointplot(x='# Gears', y="CombMPG", data=df)

Out[65]:

<seaborn.axisgrid.JointGrid at 0x1c602a33370>

The jointplot gives us histograms on each axis, which provides some interesting insights. The most common gear configuration seems to be 8, with 6 closely behind. And MPG ratings seem to roughly follow a bell curve centered at around 22 or so.

In [66]:

sns.boxplot(x='# Gears', y="CombMPG", data=df)

sns.boxplot(x='# Gears', y="CombMPG", data=df)

Out[66]:

<AxesSubplot:xlabel='# Gears', ylabel='CombMPG'>

The box plot shows us that the range of MPG values we see on each gearbox type aren't as crazily distributed as it seemed at first glance; many of the extreme values are in fact outliers that are best discarded when analyzing the trends. This makes the real relationships easier to see; those continuously variable transmissions with a single gear are really quite good at fuel efficiency (higher MPG's are more efficient). Between 5 and 8 things are roughly the same, but from 8-10 things decline markedly.

In [67]:

sns.swarmplot(x='# Gears', y="CombMPG", data=df)

sns.swarmplot(x='# Gears', y="CombMPG", data=df)

c:\users\anura\appdata\local\programs\python\python39\lib\site-packages\seaborn\categorical.py:1296: UserWarning: 14.3% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)

Out[67]:

<AxesSubplot:xlabel='# Gears', ylabel='CombMPG'>

The swarm plot makes it even more apparent that those high MPG outliers are in fact outliers on the 6-gear vehicles; the vast majority of 6-gear vehcles have less than 32 MPG. And the overall trend is perhaps easiest to visualize and understand in this representation.

So, our final verdict: more gears result in worse fuel efficiency. Which strikes me as a little counter-intuitive! But, this is real data from the US Department of Energy for 2019 model year cars, and that's a real conclusion we've drawn, thanks to Seaborn!
